驱动-1_开发环境配置及使用

驱动环境安装

1. 安装Vs2022
2. 安装SDK
3. 安装WDK

DriverDemo

#include "ntddk.h"
VOID DriverUnload(PDRIVER_OBJECT DriverObject)
{
    if (DriverObject != NULL)
    {
        DbgPrint("[%ws]Driver Upload,Driver Object Address:%p", __FUNCTIONW__,DriverObject);
    }
    return;
}
NTSTATUS DriverEntry( PDRIVER_OBJECT DriverObject,PUNICODE_STRING  RegistryPath)
{
    //KdBreakPoint();
    DbgPrint("[%ws]Hello Kernel World\n",__FUNCTIONW__);
    if (RegistryPath != NULL)
    {
        DbgPrint("[%ws]所在注册表位置:%wZ\n", __FUNCTIONW__,RegistryPath);
    }
    if (DriverObject != NULL)
    {
        DbgPrint("[%ws]驱动对象地址:%p\n", __FUNCTIONW__,DriverObject);
        DriverObject->DriverUnload = DriverUnload;
    }
    return STATUS_SUCCESS;
}

error MSB8040: 此项目需要缓解了 Spectre 漏洞的库

https://www.cnblogs.com/hack747/p/16398455.html

安装对应版本的Spectre缓解库


MyDriver1.inf : error 1297: Device driver does not install on any devices

删除.inf文件重新编译即可

驱动签名禁用

https://zh.theihccforum.com/how-disable-driver-signature-enforcement-windows-10

bcdedit /set nointegritychecks on
bcdedit /set testsigning on
bcdedit /set loadoptions DDISABLE_INTEGRITY_CHECKS

驱动加载运行

sc create scdemo binPath="c:\demo.sys" type= kernel start= demand
sc start scdemo
sc stop scdemo
sc delete scdemo

使用Drover Loader/Unloader 加载驱动


可以使用debugview查看加载内容


MacOs下 Windbg view 双机调试配置

Net

net相对于使用串口较为简单设置些

//调试机器	： 192.168.181.130
//被调试机器 	： 192.168.181.138
//被调试机下生成key
bcdedit /debug on
bcdedit /dbgsettings net hostip:192.168.181.130 port:50010
Key=3cb9a0g3w94mp.1pnw6lxz6ohti.38p3gpzpdrc7k.qqgcqkf16kuv

//在调试机windbg下attach to kernel进行net连接



Com

1.找到对应的虚拟机.vmx文件进行修改

被调试机器设置

将原有的 serial0项删除替换

serial0.fileType = "thinprint"
serial0.fileName = "thinprint"
serial0.fileName = "/Users/{name}/com1"
serial0.present = "TRUE"
serial0.fileType = "pipe"
serial0.yieldOnMsrRead = "TRUE"
serial0.startConnected = "TRUE"

调试机器设置

serial0.fileType = "thinprint"
serial0.fileName = "thinprint"
serial0.present = "TRUE"
serial0.present = "TRUE"
serial0.fileType = "pipe"
serial0.fileName = "/Users/{name}/com1"
serial0.yieldOnMsrRead = "TRUE"
serial0.tryNoRxLoss = "FALSE"
serial0.pipe.endPoint = "client"

{name}替换为自己电脑的用户名

2. 被调试机设置开启串口 管理员cmd运行以下命令

bcdedit /enum ACTIVE
bcdedit /dbgsettings serial baudrate:115200 debugport:1
bcdedit /copy {current} /d "Windows Debug Entry"

bcdedit /displayorder {current} {上一行的id}
bcdedit /displayorder {current} {f08931ce-554a-11ed-850e-c773c5b7f7b1}

bcdedit /debug {上一行的id} ON
bcdedit /debug  {f08931ce-554a-11ed-850e-c773c5b7f7b1} ON

bcdedit -set TESTSIGNING on
bcdedit /dbgsettings

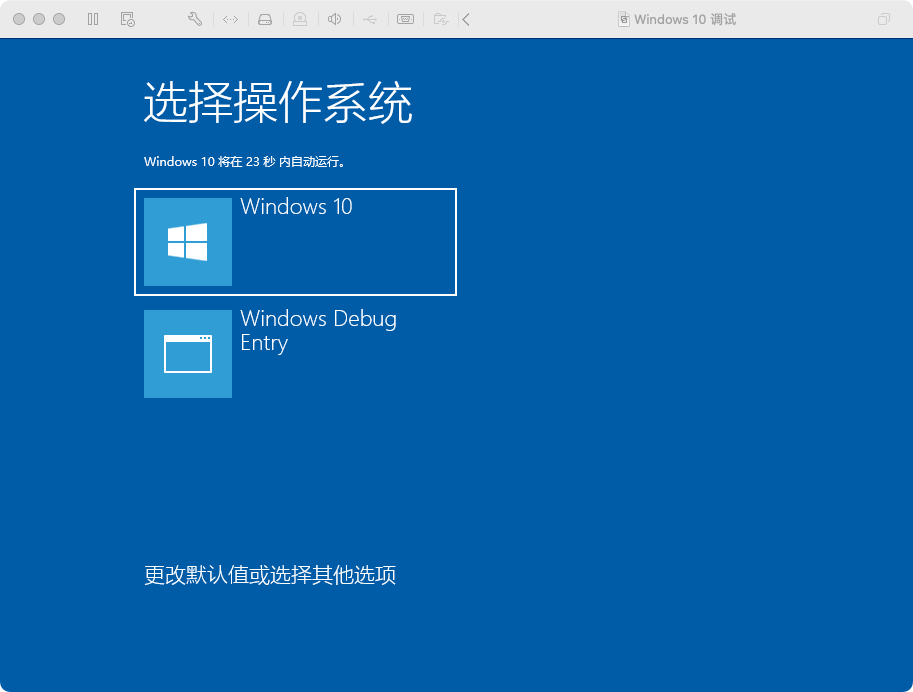

设置完成后重启系统 选择第二项


3.调试机设置

计算机管理 - 设备管理器- 端口-通信端口-端口设置 设置为115200


4.调试机windbg kernel Debugging com连接进行调试


使用VirtualKD-Redux（×）

在mac下使用虚拟机通过该方法尝试时没能成功

https://github.com/4d61726b/VirtualKD-Redux

安装重启后 进入该模式F8关闭签名后会一直卡死。。。
