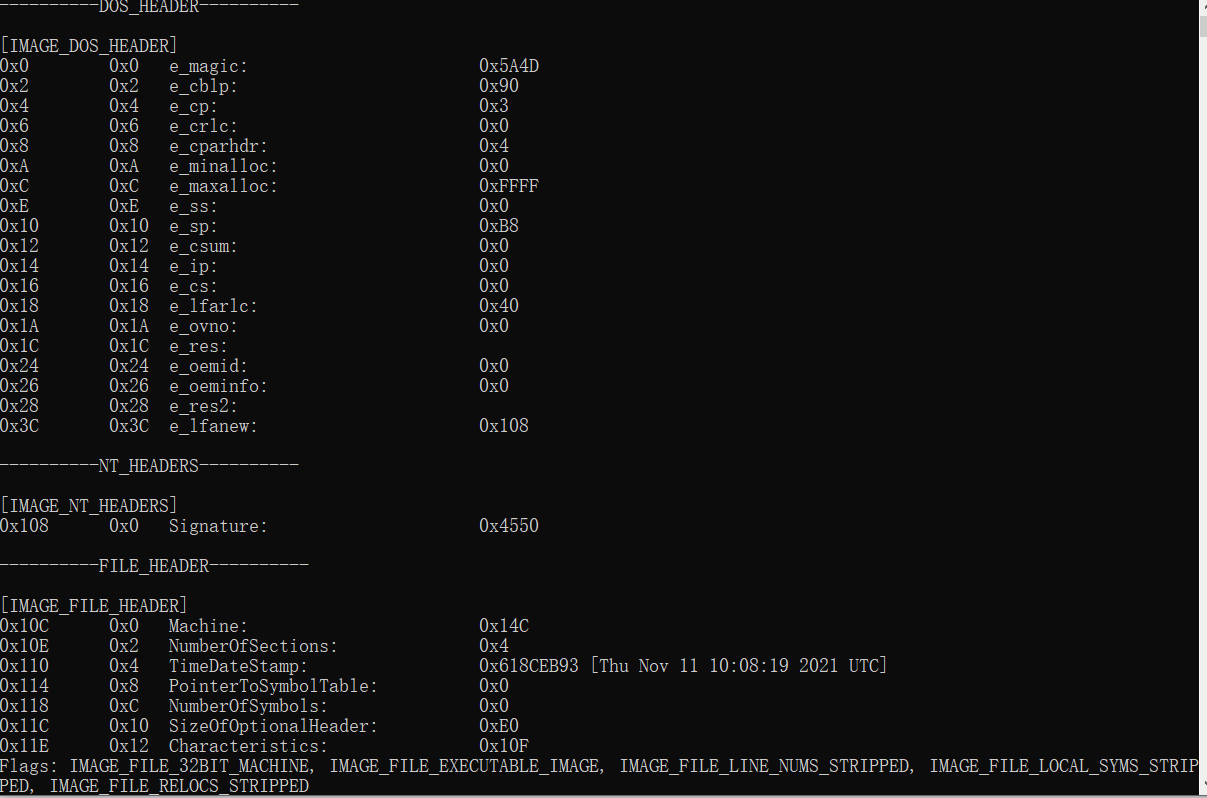

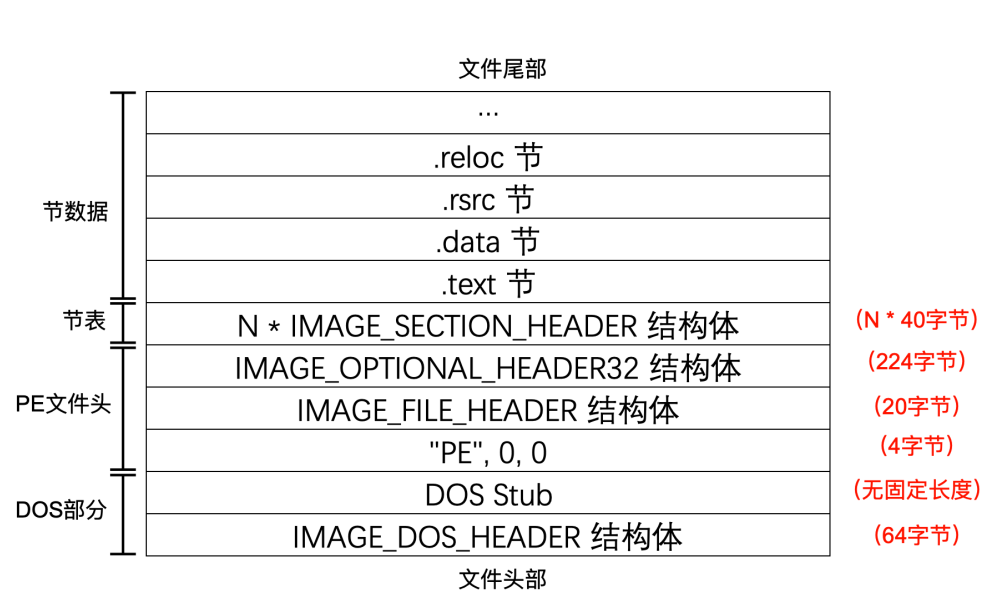

typedef struct _IMAGE_DOS_HEADER { // DOS .EXE header WORD e_magic; // Magic number WORD e_cblp; // Bytes on last page of file WORD e_cp; // Pages in file WORD e_crlc; // Relocations WORD e_cparhdr; // Size of header in paragraphs WORD e_minalloc; // Minimum extra paragraphs needed WORD e_maxalloc; // Maximum extra paragraphs needed WORD e_ss; // Initial (relative) SS value WORD e_sp; // Initial SP value WORD e_csum; // Checksum WORD e_ip; // Initial IP value WORD e_cs; // Initial (relative) CS value WORD e_lfarlc; // File address of relocation table WORD e_ovno; // Overlay number WORD e_res[4]; // Reserved words WORD e_oemid; // OEM identifier (for e_oeminfo) WORD e_oeminfo; // OEM information; e_oemid specific WORD e_res2[10]; // Reserved words LONG e_lfanew; // File address of new exe header } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;

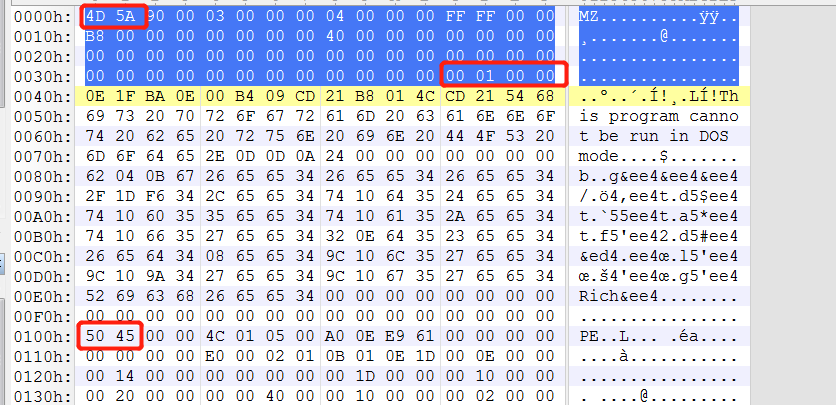

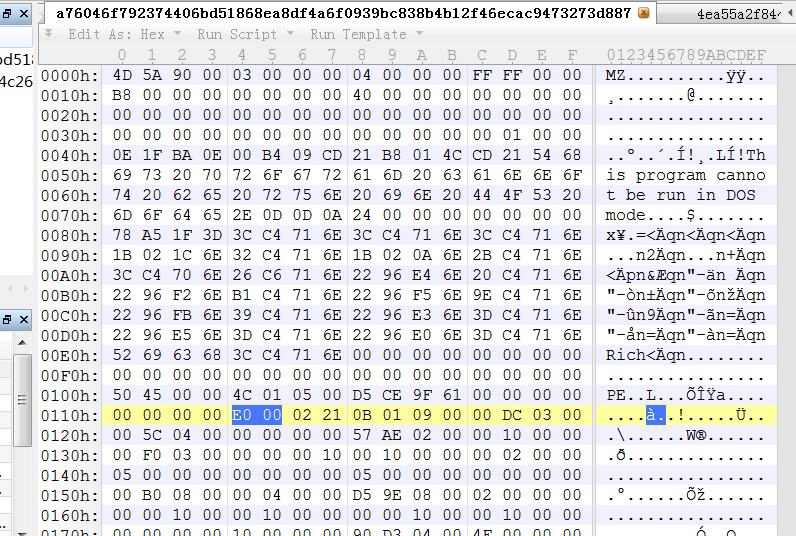

WORD e_magic; // Magic number 标志位(MZ 4D5A 占2个字节)
Long e_lfanew; // File address of new exe header
偏移位置（指向下一个文件前面）

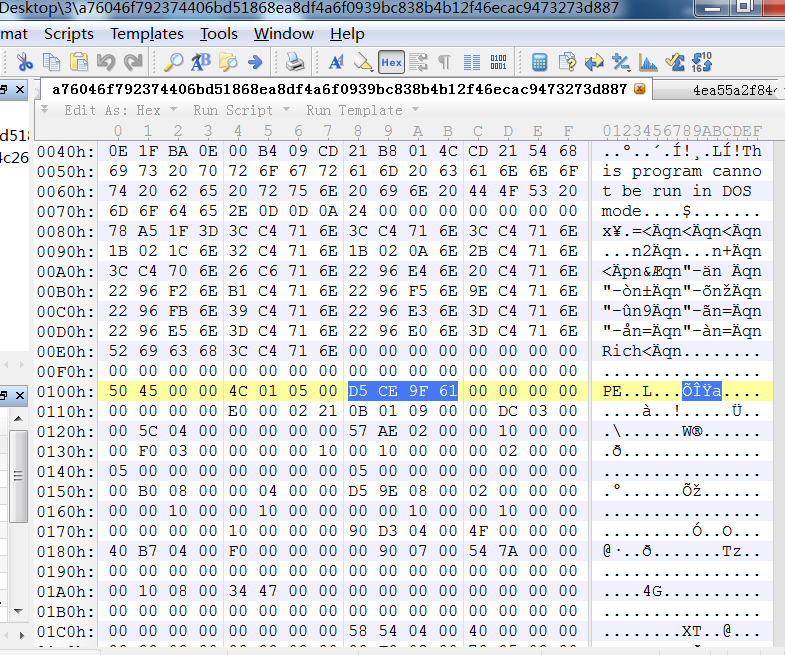

#define IMAGE_FILE_RELOCS_STRIPPED 0x0001 // Relocation info stripped from file. #define IMAGE_FILE_EXECUTABLE_IMAGE 0x0002 // File is executable (i.e. no unresolved external references). #define IMAGE_FILE_LINE_NUMS_STRIPPED 0x0004 // Line nunbers stripped from file. #define IMAGE_FILE_LOCAL_SYMS_STRIPPED 0x0008 // Local symbols stripped from file. #define IMAGE_FILE_AGGRESIVE_WS_TRIM 0x0010 // Aggressively trim working set #define IMAGE_FILE_LARGE_ADDRESS_AWARE 0x0020 // App can handle >2gb addresses #define IMAGE_FILE_BYTES_REVERSED_LO 0x0080 // Bytes of machine word are reversed. #define IMAGE_FILE_32BIT_MACHINE 0x0100 // 32 bit word machine. #define IMAGE_FILE_DEBUG_STRIPPED 0x0200 // Debugging info stripped from file in .DBG file #define IMAGE_FILE_REMOVABLE_RUN_FROM_SWAP 0x0400 // If Image is on removable media, copy and run from the swap file. #define IMAGE_FILE_NET_RUN_FROM_SWAP 0x0800 // If Image is on Net, copy and run from the swap file. #define IMAGE_FILE_SYSTEM 0x1000 // System File. #define IMAGE_FILE_DLL 0x2000 // File is a DLL. #define IMAGE_FILE_UP_SYSTEM_ONLY 0x4000 // File should only be run on a UP machine #define IMAGE_FILE_BYTES_REVERSED_HI 0x8000 // Bytes of machine word are reversed.
#define IMAGE_DLLCHARACTERISTICS_DYNAMIC_BASE 0x0040 // DLL can move. #define IMAGE_DLLCHARACTERISTICS_FORCE_INTEGRITY 0x0080 // Code Integrity Image #define IMAGE_DLLCHARACTERISTICS_NX_COMPAT 0x0100 // Image is NX compatible #define IMAGE_DLLCHARACTERISTICS_NO_ISOLATION 0x0200 // Image understands isolation and doesn't want it #define IMAGE_DLLCHARACTERISTICS_NO_SEH 0x0400 // Image does not use SEH. No SE handler may reside in this image //seh的保护机制 #define IMAGE_DLLCHARACTERISTICS_NO_BIND 0x0800 // Do not bind this image. #define IMAGE_DLLCHARACTERISTICS_APPCONTAINER 0x1000 // Image should execute in an AppContainer #define IMAGE_DLLCHARACTERISTICS_WDM_DRIVER 0x2000 // Driver uses WDM model #define IMAGE_DLLCHARACTERISTICS_GUARD_CF 0x4000 // Image supports Control Flow Guard. #define IMAGE_DLLCHARACTERISTICS_TERMINAL_SERVER_AWARE 0x8000
